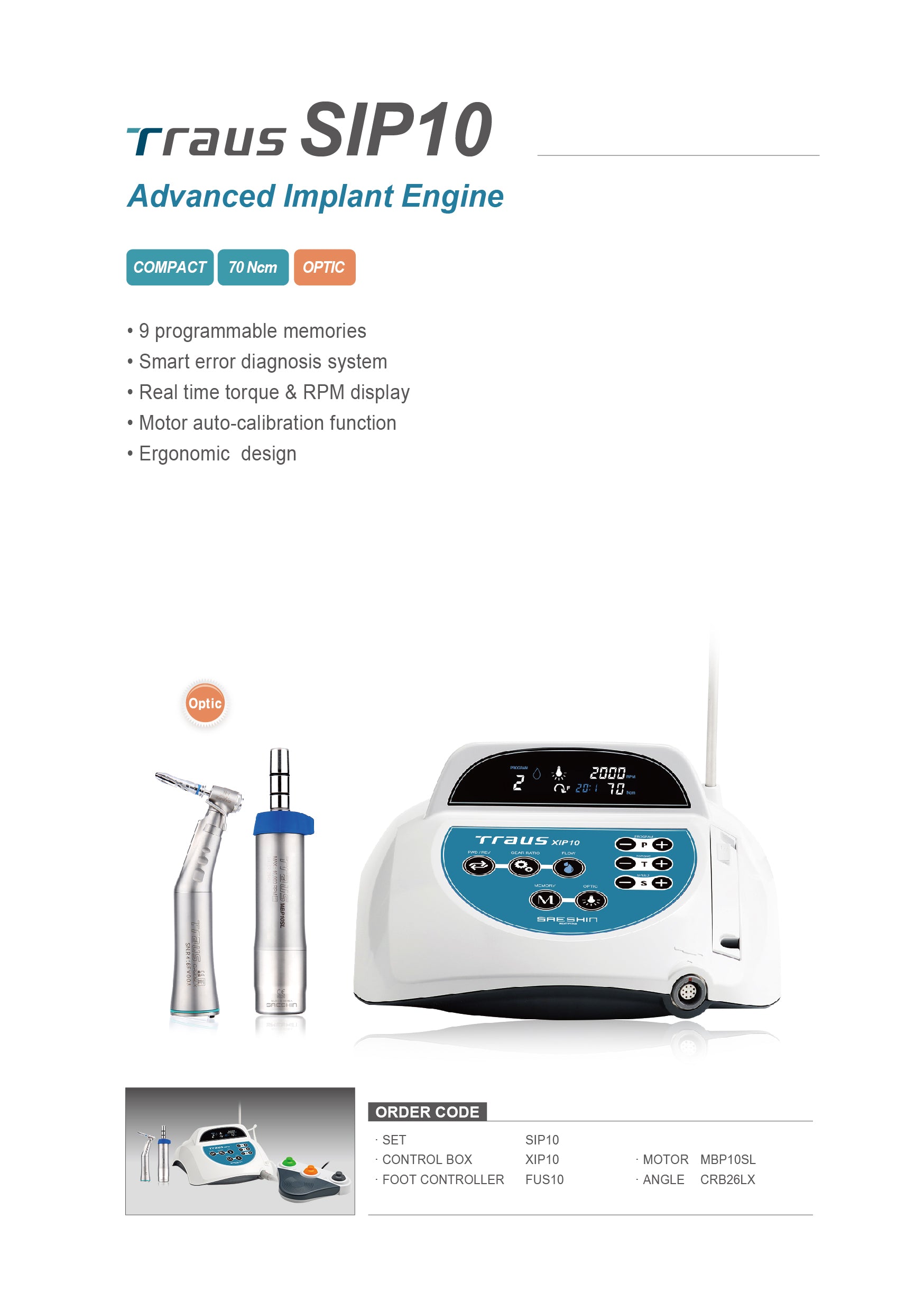

TRAUS SIP10 IMPLANT MOTOR SET

Advanced Implant Engine

• BLDC motor with high performance designed by Saeshin’s R&D technology
• Gear ratio – 1:5, 1:4, 1:1, 16:1, 20:1, 27:1, 32:1, 64:1
• 9 Program memory functions
• Automatic overload protection function
• Displays actual RPM and torque during operation to help maintain the proper working condition
• Motor Auto-Calibration function
• Multi-functional foot controller
• Optic Function(Option)
• Motor handpiece followed “ISO3964” for standard connection. (0~40K RPM)
• Double sealed contra angle handpiece

Contra Angle Handpiece

• Standard Gear Ratio – 20:1
• Speed – 15~2,000 RPM
• Torque – Max 70 N.cm
• Weight – 2.8 oz
• Model name – Optic : CRB26LX, Non-optic : CRB26XX

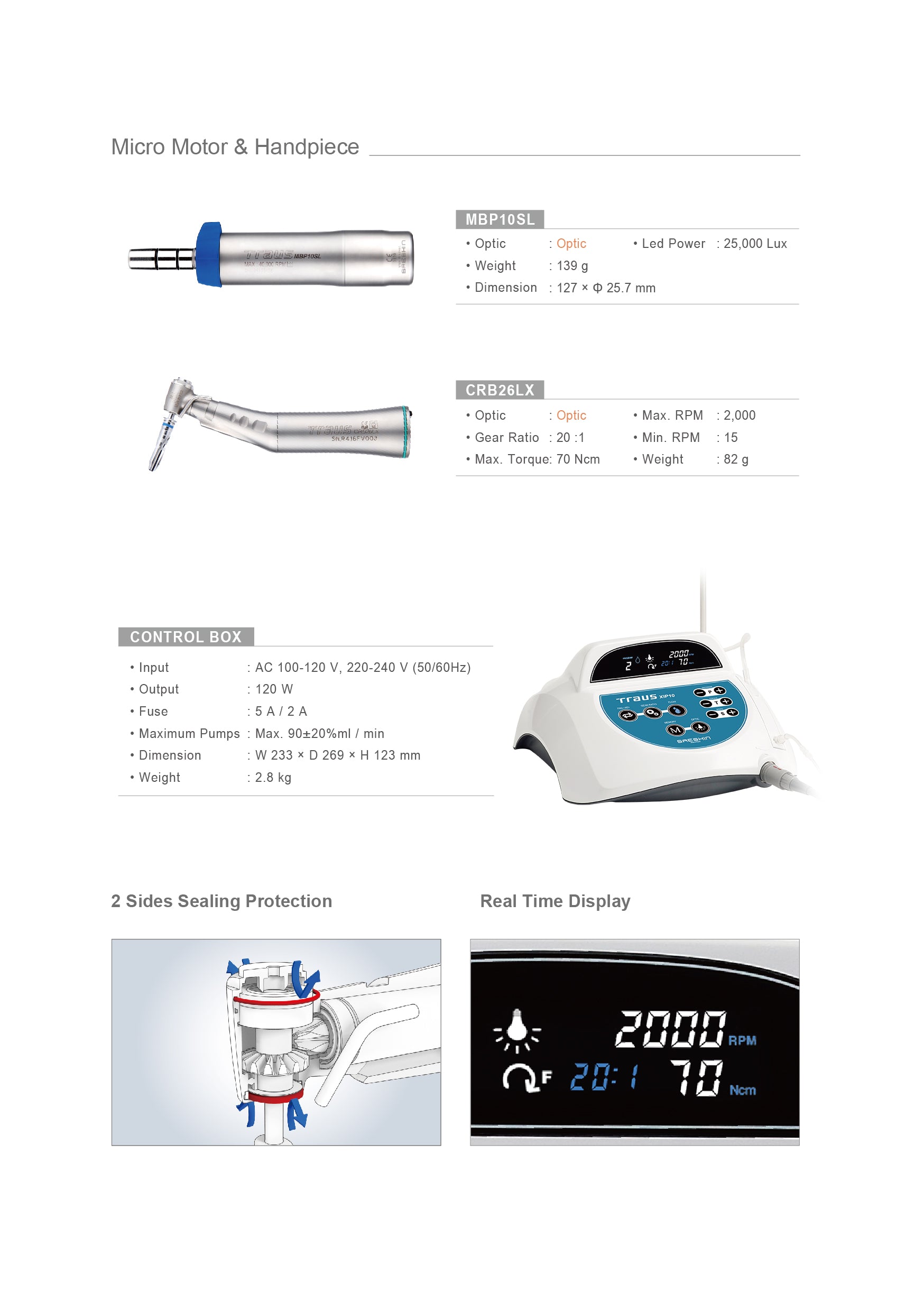

E-type Motor Handpiece

• Speed – 0~40,000 RPM (1:1)
• Weight – 9.5 oz
• Model name – Optic : MBP10SL, Non-optic : MBP10SX

Control Unit

• Dimension – W233 x D269 x H120
• Weight – 6.2 lbs
• 110v, UL Plug
• Model name – Optic, Non-optic : XIP10
